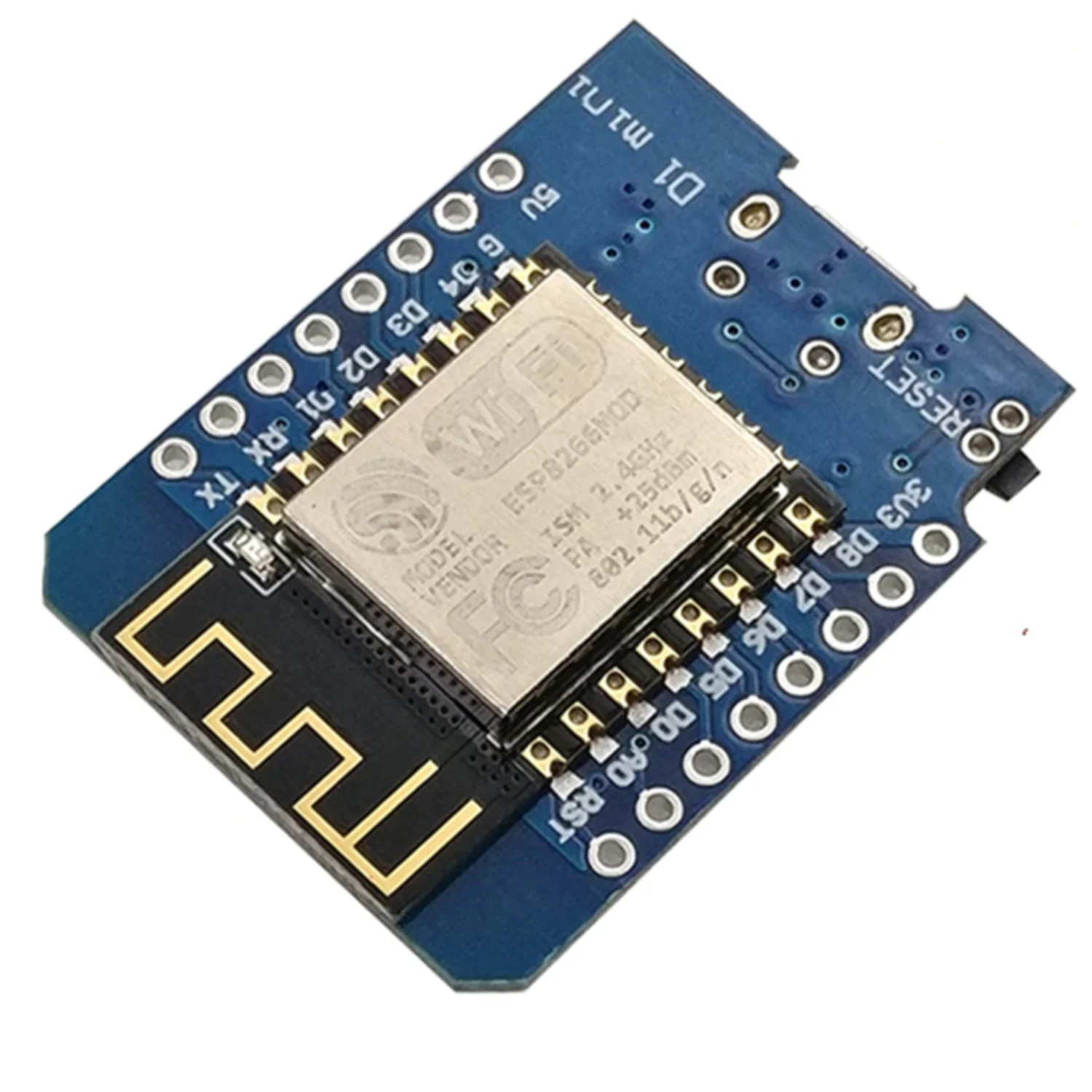

WEMOS D1 Mini
The ESP8266 board used for the luxmeter and Vindriktning projects. Check that the listing matches the board and pinout.
Luxmeter · VindriktningView supplier listing
THE BOARD
A few parts.
A lot of possibilities.
Start with the right board, add a sensor and give your project a home. These are the components used in the collection.
THE SENSOR
BH1750 light sensor
A digital light sensor connected over I²C. The luxmeter configuration uses address 0x23 and a 30-second update interval.
LuxmeterView supplier listing
THE FINISHING TOUCH

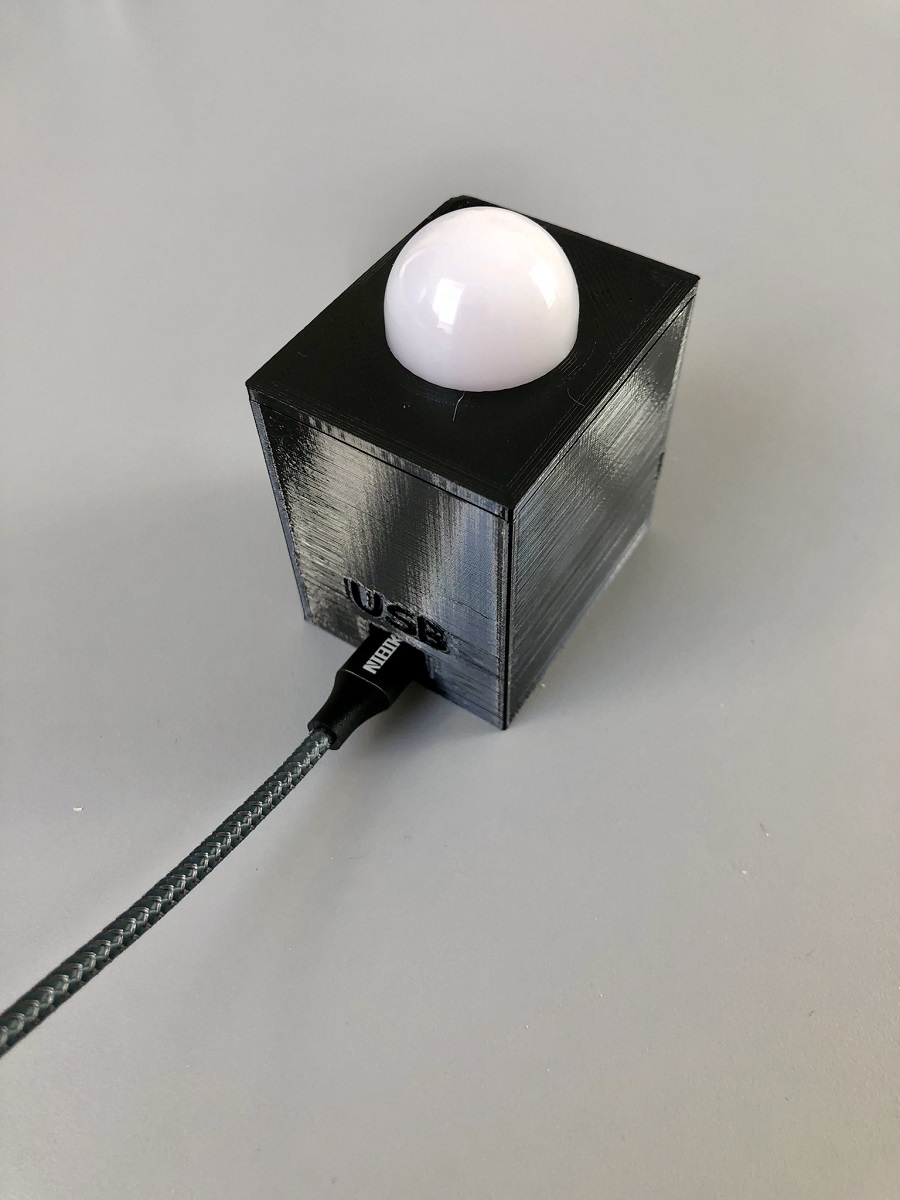

A home for your sensor
Give the luxmeter a tidy enclosure with the project's downloadable 3D-print files. Check fit against your actual components.
Printable enclosureDownload print filesCONNECT THE DOTS
Luxmeter wiring
Connect the BH1750 to your WEMOS D1 Mini using four wires. Power the sensor from 3.3 V and share ground.
More hardware notes| BH1750 | WEMOS D1 Mini |
|---|---|
| VCC | 3.3 V |
| GND | GND |
| SCL | D1 / GPIO5 |
| SDA | D2 / GPIO4 |
Parts ready?
Find the matching project and get your board connected.
